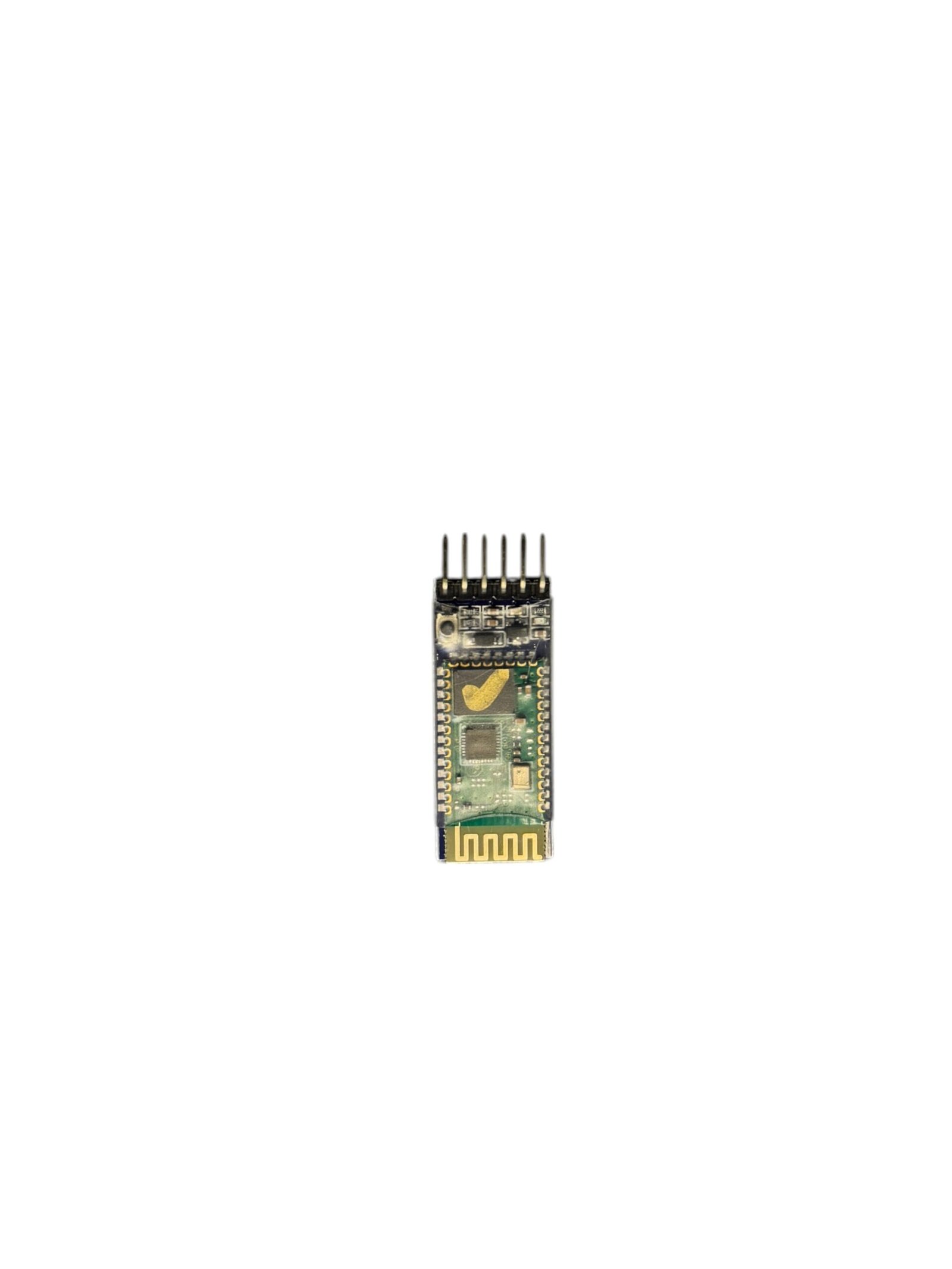

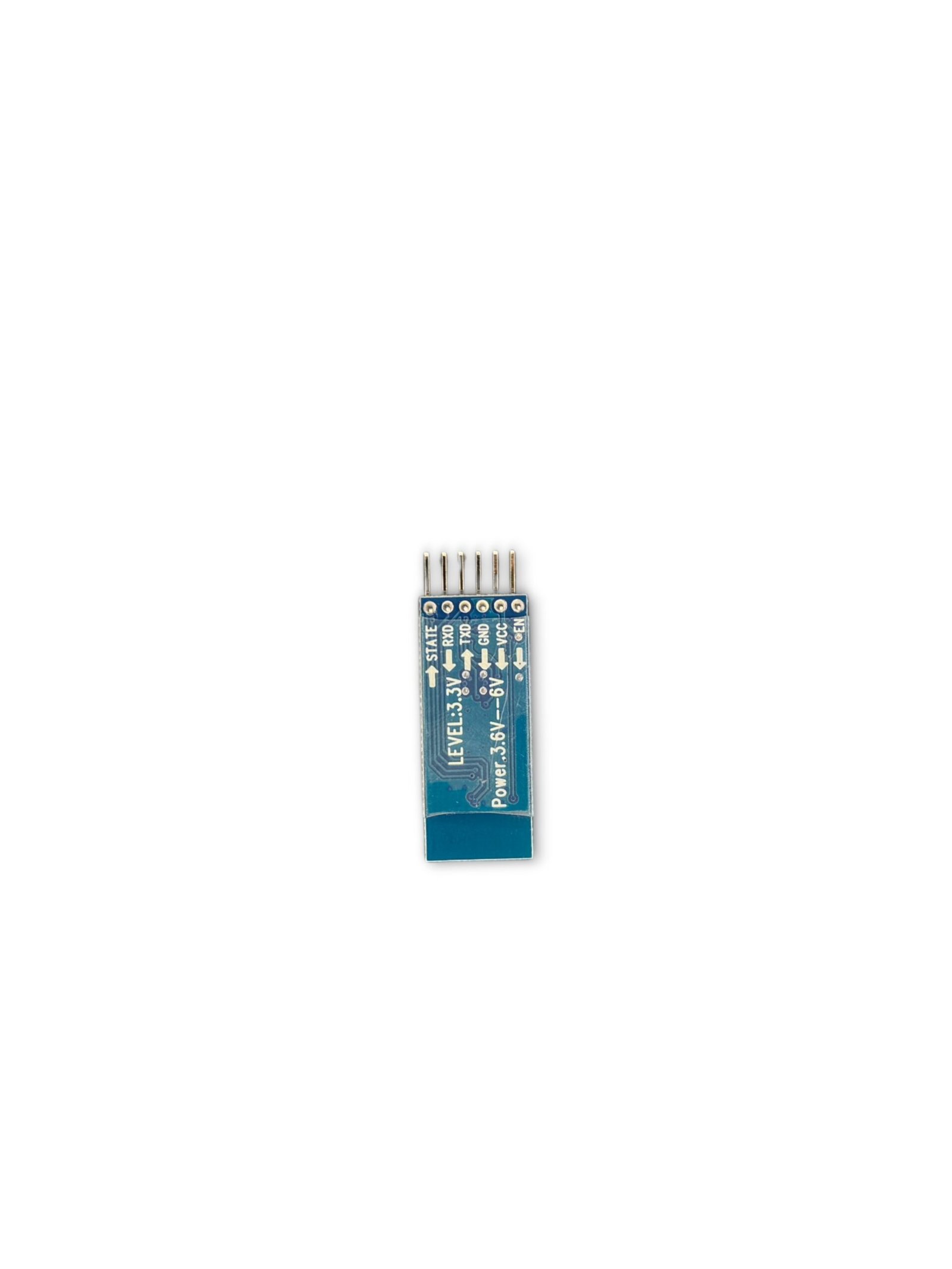

Bluetooth HC 05

Original price was: ₹350.00.Current price is: ₹239.00.

  • Bluetooth Version: v2.0 + EDR (Enhanced Data Rate)
  • Operating Modes:
    • Master
    • Slave
  • Frequency Band: 2.4GHz ISM Band
  • Power Supply: 3.6V to 6V DC (typically 5V)
  • Logic Level: 3.3V
  • Default Baud Rate: 9600 bps (Configurable via AT commands: 1200 to 1382400 bps)
  • Security:
    • PIN for pairing (Default: 1234 or 0000)
  • Communication Range: Up to 10 meters (33 feet) in open space
  • Power Consumption:
    • Standby mode: 1-2 mA
    • Connected mode: 8-10 mA
Add to Wishlist
SKU: 0066 Category:
Trust Badge Image

Description

The HC-05 is a popular Bluetooth module designed for wireless communication between devices over a standard Bluetooth connection. It supports both Master and Slave configurations, making it versatile for a wide range of applications. Compatible with a 3.3V logic level but operates on a 5V power supply, the HC-05 features an integrated AT command set for easy customization of settings such as device name, baud rate, and pairing PIN. It’s commonly used in IoT projects, robotics, and serial communication tasks. Its range typically extends to 10 meters in standard conditions

Additional information

Weight 100 g
Dimensions 5 × 4 × 4 cm
